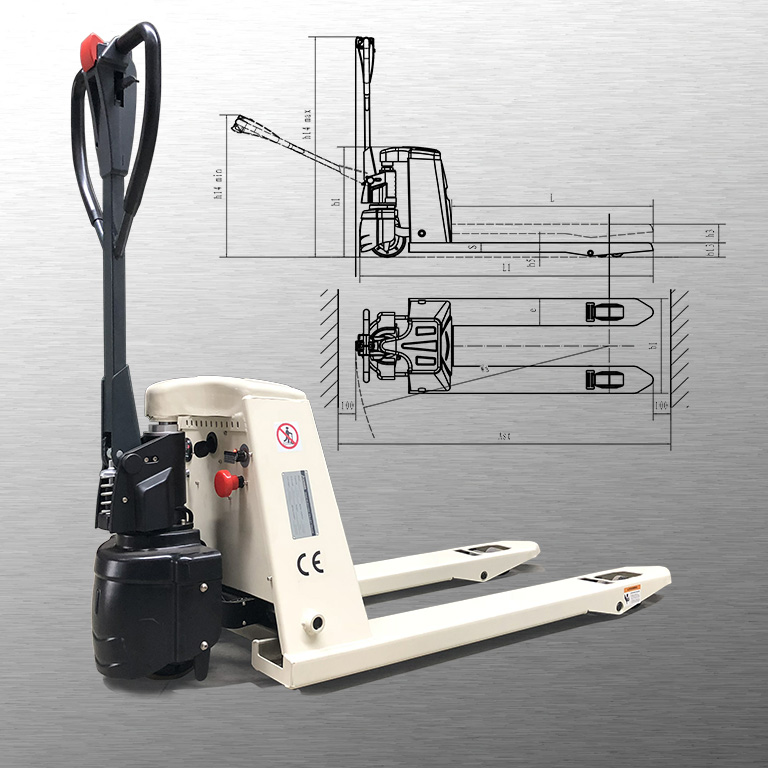

| Model | WEPT20SA | |
| Drive unit | Semi-electric | |
| Operator type | Walkie | |
| Load capacity | Q (kg) | 2000 |
| Service weight | kg | 170/180 |
| Wheel type | PU | |
| Lift height | h3 (mm) | 115 |
| Fork lowered | h13 (mm) | 85 |
| Overall length | l1 (mm) | 1670/1740 |
| Overall width | b1/ b2 (mm) | 560/685 |
| Fork dimensions | s/ e/ l (mm) | 80/160/1150 /1220 |
| Outside fork width | b5 (mm) | 560/685 |
| Aisle width，1000×1200 pallet crossways | Ast (mm) | 1920 |
| Aisle width，800×1200 pallet crossways | Ast (mm) | 1920 |
| Outer turing radius | Wa (mm) | 1480/1550 |
| Travel speed，laden/unladen | km/ h | 3.5/4 |
| Maximum gradeability, laden/ unladen | % | 2/6 |
| Drive motor rating S2 45 min | kW | 0.75 |
| Battery voltage/rated capacity | V/ Ah | 24/50 |
